Freeze dryer 2-10 LSCplus
Epsilon 2-10D LSCplus
Freeze dryer
ll_to Content

High performance freeze-drying

The Epsilon 2-10D LSCplus freeze dryer is a general-purpose, high-performance pilot unit. It combines stainless steel shelves with internal heat transfer media channels for heating and cooling, enabling it to meet even the most stringent demands of the pharmaceutical and biotechnology industries. It is equally ideal for product development and small-scale production activities.

Wide range of drying options

The key features of the Epsilon 2-10D LSCplus are its drying options using up to seven shelves with a total area of 0.98 m2, adjustable shelf spacing from 38 to 170 mm, and a hydraulic stoppering device with optional stainless steel bellows seal. The Epsilon 2-10D LSCplus is equally ideal for product development and small-scale production activities.

Product details

Ice condenser capacity: 10 kg
Ice condenser performance: 10 kg/24 h
Ice condenser temperature: -88 °C
Chamber volume: 50 liters
Number of shelves: 1 to 7
Shelf dimensions: 350 x 400 mm (W x D)
Shelf area: 0.14 m² to 0.98 m²
Shelf spacing: 354 mm to 38 mm
Shelf temperature: -55 °C to +60 °C
Shelf temperature accuracy: max. ±1 °C
Cooling system: 2 independent systems, air cooled (optionally water cooled)
Ice condenser cooling system: 2 compressors, 1.2 kW each, in cascade configuration
Shelf cooling system: 1 compressor, 0.9 kW
Unit dimensions: 1,295 × 1,190 × 850 mm (H × W × D)

Downloads

Product brochure
Brochure pilot freeze dryers
Brochure pilot freeze dryers
English
pdf • 1 MB

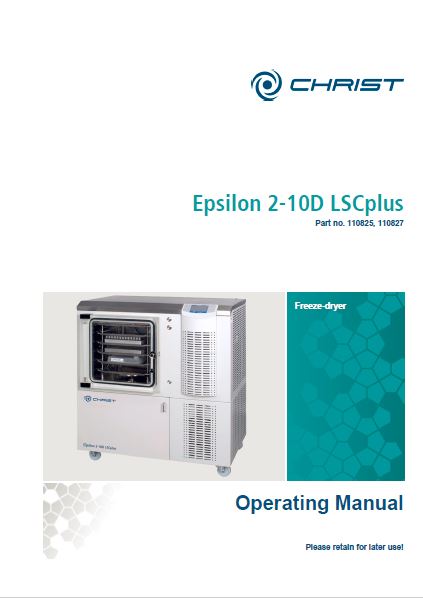

Manual Epsilon 2-10D LSCplus
Manual Epsilon 2-10D LSCplus
English
jpg • 31 KB
